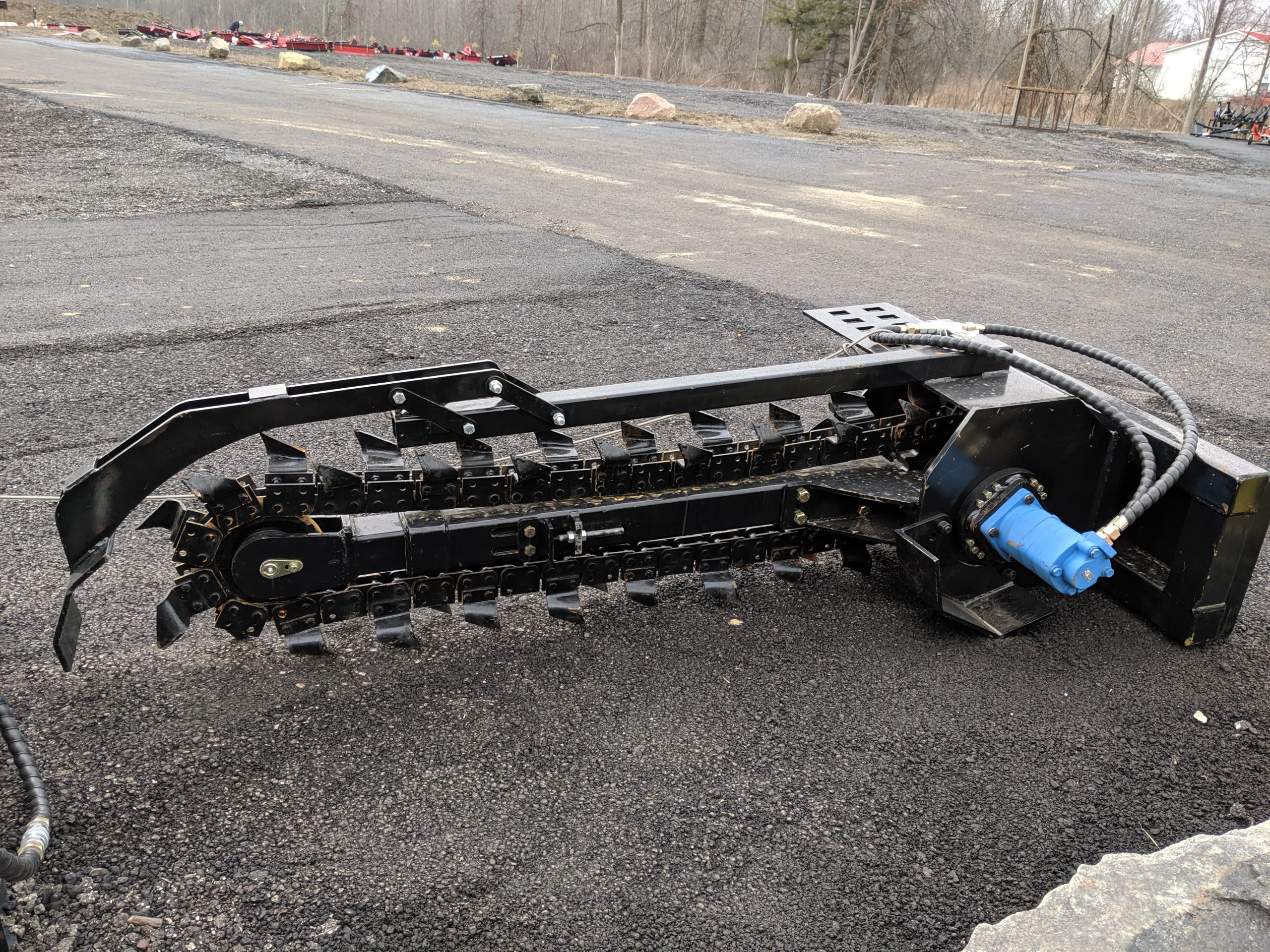

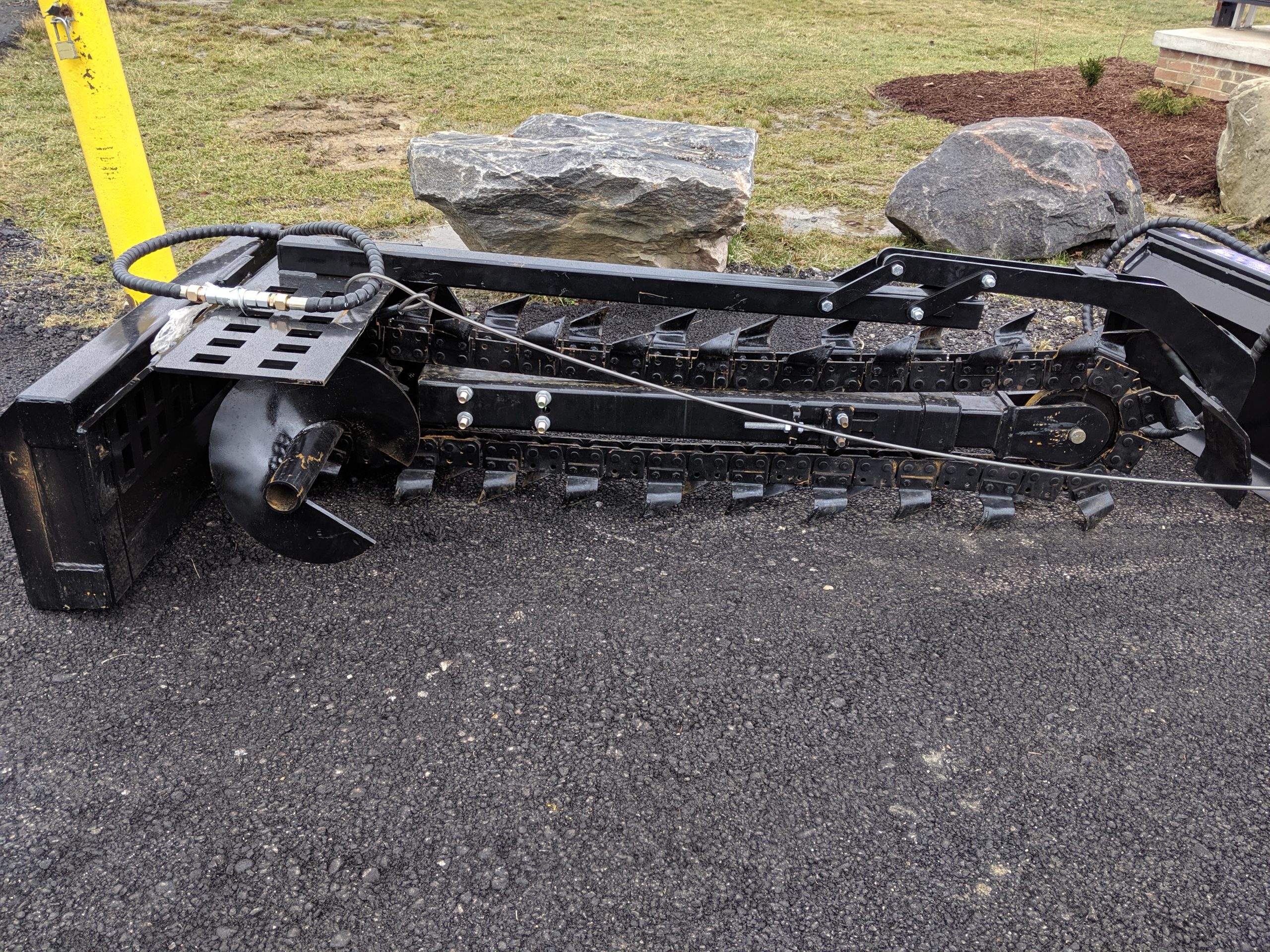

Skid Steer Trencher 48”
The 4 FT Trencher is designed to dig long industrial or personal property trenches in various soil types.
Available for skid steer loaders or tractors equipped with the Universal Skid Steer Style Quick Tach
System. This hydraulic-driven, forward, and reverse spinning trencher cuts into hard rocky or frozen
ground with the assist of the high-quality direct-drive hydraulic motor. The implement features a
dynamically balanced auger, heavy-duty boom, and spring-loaded crumber for sweeping the trench
clean. The impressive boom highlights reversible and replaceable double-sided carbide cutting teeth
made to tear through rock and hard ground as well as clear out the track quicker. This Skid Steer
Trencher will prepare a deep and narrow trench perfect for utility installations.
Specifications:
Weight: 820 lbs
Working saw length: 48 in
Digging depth: 48 in
Working width: 6 in
Number of cutting teeth:
Hydraulic flow requirements: 18 – 19 gal/min
Max operating pressure: 2,900 PSI
WARRANTY
OXBOW 1yr parts warranty
